Work in Height Safety

Horizontal Anchorage Lifeline System on Cable Line

PN 4000 (Roof Mounted) is ideal for use on pre-engineered uilding roofs, fragile roofs, industrial buildings, airports etc

Available Brands:

  • KARAM
Ref. Horizon PN 4000 (Roof Mounted)

Horizon PN 4000 (Roof Mounted) provides permanent anchorage to max. 4 users who have to constantly move along an elevated horizontal track on the roof.

IDEAL FOR USE
  • On pre-engineered building roofs, fragile roofs, industrial buildings, airports etc.
GENERAL FEATURES
  • On pre-engineered building roofs, fragile roofs, industrial buildings, airports etc.
  • MOC: Stainless Steel
  • The line has a Shock Absorber at one end which reduces the impact of fall both on the user as well as on the extremities
  • The Shock Absorber features a tension indicator and a fall indicator.
  • Intermediates are required at every 5.0m to 15.0m for longer lines
  • Carriage body passes through intermediates without disconnection.
  • Variety of roof posts available for different types of roof sheet profiles.
  • Certified to EN 795:2012 Type C and TS 16415:2013 (for upto 4 users), IS 3521(Part 8):2021 and ATEX 2014/34/EU


Horizontal Anchorage Lifeline System on Cable Line

PN 4000 (Floor/Ceiling Mounted) is ideal for use in truck loads/unloading, advertisement bill boards, industrial cranes, over sized machines, reactors, turbines, rail gantries etc.

Available Brands:

  • KARAM
Ref. Horizon PN 4000 (Floor/Ceiling Mounted)

Horizon PN 4000 (Floor/Ceiling Mounted) provides permanent anchorage to max. 4 users simultaneously, who have to constantly move along an elevated horizontal track.

IDEAL FOR USE
  • In truck loading/unloading, advertisement bill boards, industrial cranes, oversized machines, reactors, turbines, rail gantries etc.
GENERAL FEATURES
  • The line has a Shock Absorber at one end which reduces the impact of fall both on the user as well as on theextremities.
  • The Shock Absorber features a tension indicator and a fall indicator.
  • Intermediates are required at every 5.0m :o 15.0m for longer lines.
  • Carriage body passes through intermediates without disconnection. The system is certified to be intrinsically safe: hence, it is an ideal choice for use in Industries like Petroleum / Petro-Chemical Plants without fear of causing explosion due to any sparking. Certified to EN 795:2012 Type C and TS 15415:2013 (for up to 4 users), IS 3521(Part 8):2021 and ATEX 2014/34/EU.

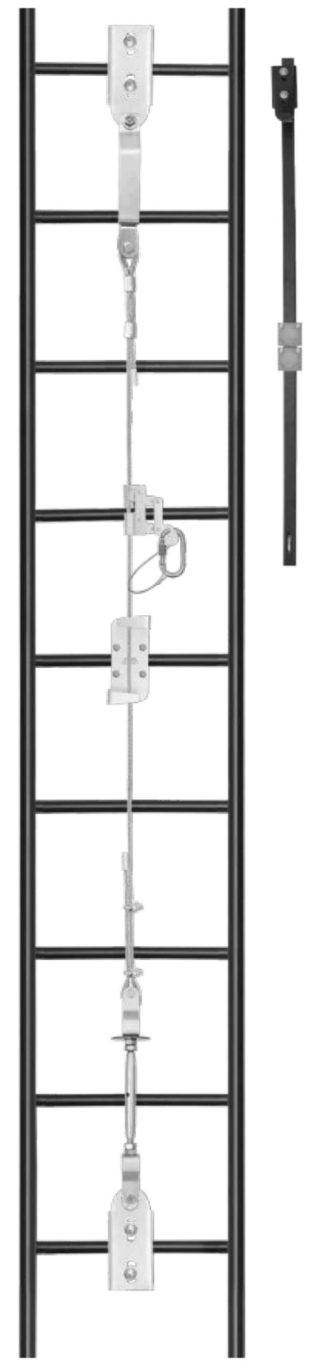

Vertical Anchorage Lifeline System

PN 7000 is ideal for use at telecom towers, radio & TV mast, power supply & hydroelectric installations, industrial chimney, wind power facility, construction sites etc.

Available Brands:

  • KARAM
Ref. Vertex PN 7000

PN 7000 is an integrated solution to arrest the fall of a user who has to constantly climb up and down a ladder.

IDEAL FOR USE
  • In truck loading/unloading, advertisement bill boards, industrial cranes, oversized machines, reactors, turbines, rail gantries etc.
GENERAL FEATURES
  • Telecom towers, radio and TV mast. power supply and hydroelectric installations, industrial chimney, wind power facility, construction sites etc.
  • GENERAL FEATURES
  • MOC: Stainless Steel SS 316.
  • Permanently installed Stainless Steel Shock Absorber at the top of the line which offers distinct advantage over the textile absorber used in other lines in term of UV degradation and resistance to harsh climate conditions.
  • Shock Absorber is constructed of a unique design that helps in easy installation of the system.
  • Intermediates to reduce vibration and proper alignment of wire rope at every 10m.
  • Certified to EN 353-1:2014+A1:2017, Atex 2014/34/EU. IS 3521(Part 4):2021
